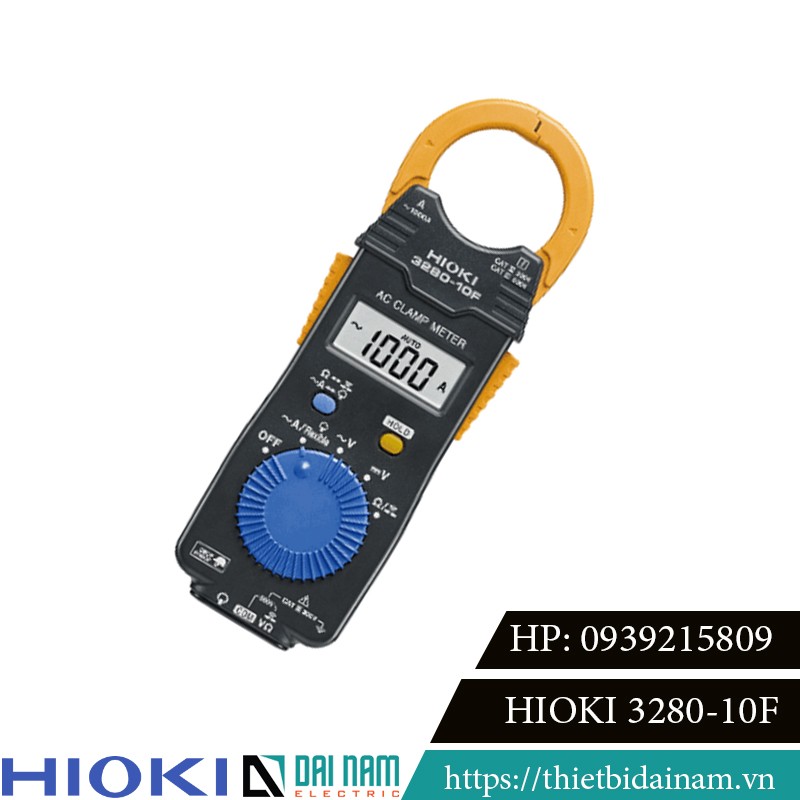

Hioki 3280-10F Clamp Ampere Measurement range 1000A/AC extended 4200A/AC Voltage 600VAC/DC
Hioki 3280-10F Clamp Ampere Measurement range 1000A/AC extended 4200A/AC Voltage 600VAC/DC
Hioki 3280-10F Clamp Ampere Measurement range 1000A/AC extended 4200A/AC Voltage 600VAC/DC

Hioki 3280-10F Clamp Ampere Measurement range 1000A/AC extended 4200A/AC Voltage 600VAC/DC

Reviews (1)
₫1,540,000.00
( Tax Included VAT 10% )
Delivery within 24 working hours
Products available

Hioki 3280-10F Clamp Ampere Measurement range 1000A/AC extended to 4200A/AC (Buy additional accessories Hioki CT6280) Voltage 600VAC/DC. Specialized for inspection and repair of industrial and civil electrical systems. An indispensable measuring device for electrical engineers.

  • Product code: 3280-10F
  • Brand: Hioki
  • Origin: Japan
  • Warranty 12 months
Quantity :
Write product reviews

Technical specifications of Hioki 3280-10F Clamp Ampere

AC Current range 41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range 4.199 V to 600 V, 4 ranges
(45 to 500 Hz, Average rectified),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor N/A
Resistance range 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Display LCD, max. 4199 dgt., Display refresh rate: 400 ms
Environmental protection IP40 dustproof and waterproof (while in storage)
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 120 hours
Core jaw dia. φ 33 mm (1.30 in)
Dimensions and mass 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
Included accessories CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1

Hioki 3280-10F Clamp Meter Accessories Included with purchase.

bo-day-que-do-Hioki-L9208
L9208 Test Lead Set
Hioki 3280-10F Automatic Ammeter Hioki 9398
9398 Camera Bag

Additional accessories when needed for use with Hioki 3280-10f Clamp Meter

Hioki 3280-10F Digital Ammeter Hioki C0205
Soft Carrying Case C0205
kep-dong-mo-rong-Hioki-CT6280
CT6280 AC Flexible Extension Current Sensor Cable
  • Current up to 4200A
  • Sensor ring diameter φ 130 mm
Hioki L4933 Meter
CONTACT PIN SET L4933
  • Mounting probe of L9207-10 / DT4911, L9206, 60V DC / 30V AC probe
kep-ca-sau-Hioki L4934
SMALL ALLIGATOR CLIPS SET L4934
  • Attaches to the probe of L4932, L9207-10 / DT4911, L9206, CAT III 300 V, CAT II 600 V
Hioki-9209-meter CancelOK
PROBE HOLDER 9209
  • Secure one end of each test lead to the back of the meter.

Order code Hioki clamp meter

  • Hioki 3280-10F clamp meter Measures up to 1000A/AC
  • Hioki 3280-20F RMS clamp meter Measures up to 1000A/AC
  • Hioki 3280-70F clamp meter Measures up to 4200A/AC
Hioki
Hioki 3280-10F
49 Items

Specific References

Long P07/14/2024
Ampe kìm nhỏ gọn đo tốt

Sử udjng rất tiện lợi kết quả đo chính xác . Đi làm bỏ túi thật tiện lợi anh em à. Nhà máy mình sắm cho mỗi anh kỹ thuật 1 cây luôn
